Prime-Time Energy Management System Surface Mount

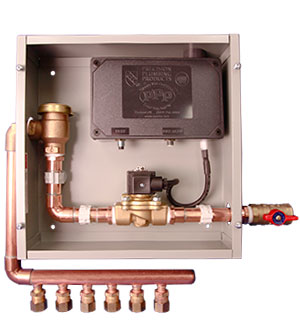

The Prime-Time Energy Management System pictured is available in different configurations with a surface mount Cabinet. The model PTS-4-EMS offers a four opening manifold capable of priming four separate floor drain traps from a single control unit. Models PTS-6-EMS thru PTS-12-EMS provide the same features only expanding to a total of twelve floor drains. The PTS-1320-EMS serves from 13 to 20 drains and finally the PTS-2130-EMS serves 21 to 30 drains. All manifolds are available in either 1/2" or 5/8" compression fittings and additional 1/2" PEX and ProPEX fittings.

Features:

  • Atmospheric Vacuum Breaker
  • Energy Management Ready
  • Manual Over Ride Switch
  • 24V Solenoid
  • 3/4” FNPT Connection
  • Calibrated Manifold For Equal Water Distribution
  • Outlet Fitting Options: 5/8” Or 1/2” Compression, 1/2” Propex And Pex Fittings
  • Four Opening Manifold To Thirty Opening Manifold

Part Numbers BIM Links
PTS-4-EMS
PTS-6-EMS
PTS-8-EMS
PTS-10-EMS
PTS-12-EMS
PTS-1320-EMS
PTS-2130-EMS
