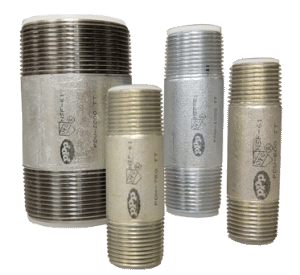

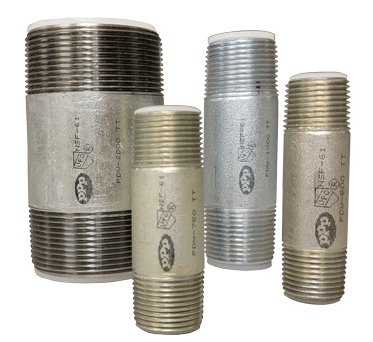

Precision Dielectric Waterway® Fittings
Precision Dielectric Waterway® fittings protect your plumbing system through an exclusive steel-to-plastic design that establishes an effective dielectric waterway.
The Precision Dielectric Waterway® line of dielectric fittings separates dissimilar metals in the electrolyte (waterway) eliminating the local galvanic cell. In addition, Precision Dielectric Waterway® metal-to-metal joint design maintains external electrical continuity, thereby preventing stray current corrosion. This feature becomes critical when stray current is present due to intentional or non-intentional grounding of direct current (DC) sources, e.g. phone systems and appliances.
Our Precision Dielectric Waterway® fittings are able to reduce the current flow that causes internal corrosion in a waterway system. This current flow exists when dissimilar metals are exposed to an electrolyte (water) and is directly proportional to the rate at which corrosion occurs.
Precision Dielectric Waterway® fittings are designed to meet the requirements of ASTM standard F1545 for continuous use at temperatures up to +225°F (- +5°F) and for pressures up to 300psi, and will achieve a dielectric waterway in all potable water and appropriate HVAC applications. Precision Dielectric Waterway® is listed by IAPMO/UPC.
Meets BABAA Build American Buy America Act and American Iron and Steel. Made in the USA, and assembled at our ISO 9001 and ISO 14001 certified-green factory in Portland, Oregon.
Features:
- Allows for Metal to Metal electrical continuity
- Protects your plumbing system
- Several Install Options

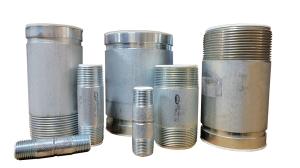

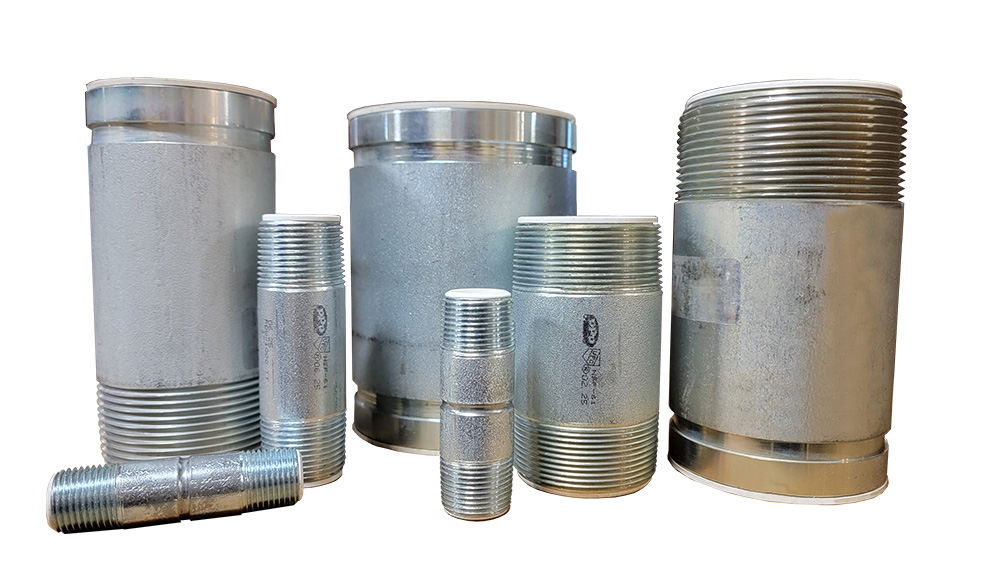

| Part Numbers | BIM Links |
|---|---|
| PDW-500TT - Thread by Thread - 1/2" |  |
| PDW-750TT - Thread by Thread - 3/4" | |
| PDW-1000TT - Thread by Thread - 1" | |

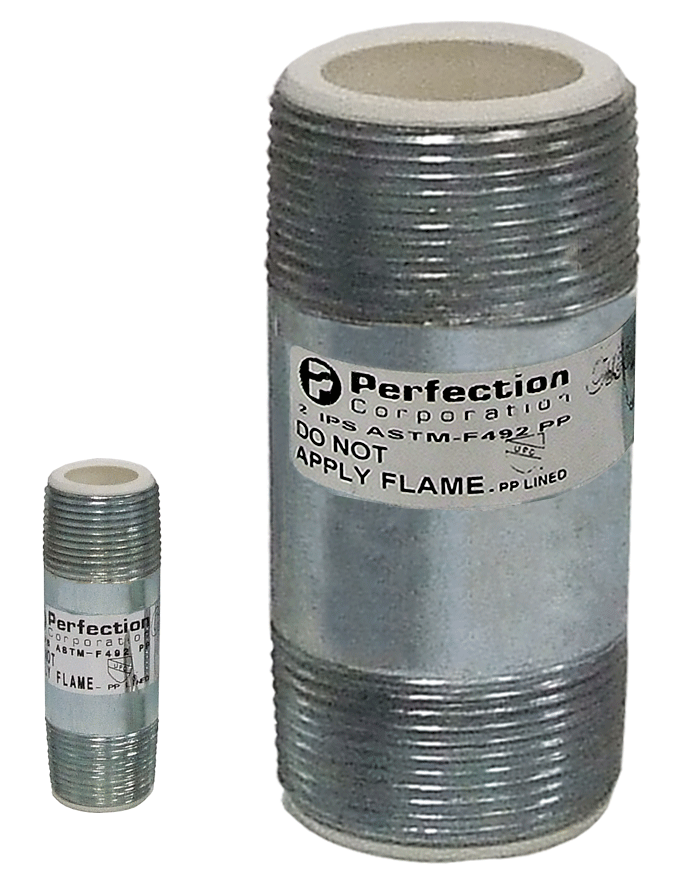

| PDW-1500TT Thread x Thread | |
| PDW-1250TT Thread x Thread | |
| PDW-2000TT - Thread by Thread - 2" | |
| PDW-2500TT - Thread by Thread - 2 1/2" | |
| PDW-3000TT - Thread by Thread - 3" | |
| PDW-4000TT - Thread by Thread - 4" | |
| PDW-1000TG - Thread by Groove - 1" | |
| PDW-1250TG - Thread by Groove - 1 1/4" | |
| PDW-1500TG - Thread by Groove - 1 1/2" | |
| PDW-2000TG - Thread by Groove - 2" | |
| PDW-2500TG - Thread by Groove - 2 1/2" | |
| PDW-3000TG - Thread by Groove - 3" | |
| PDW-4000TG - Thread by Groove - 4" | |
| PDW-2000GG - Groove by Groove - 2" | |
| PDW-2500GG - Groove by Groove - 2 1/2" | |
| PDW-3000GG - Groove by Groove - 3" | |
| PDW-4000GG - Groove by Groove - 4" |
