Prime-Time 24V Trap Priming Assembly Surface Mount

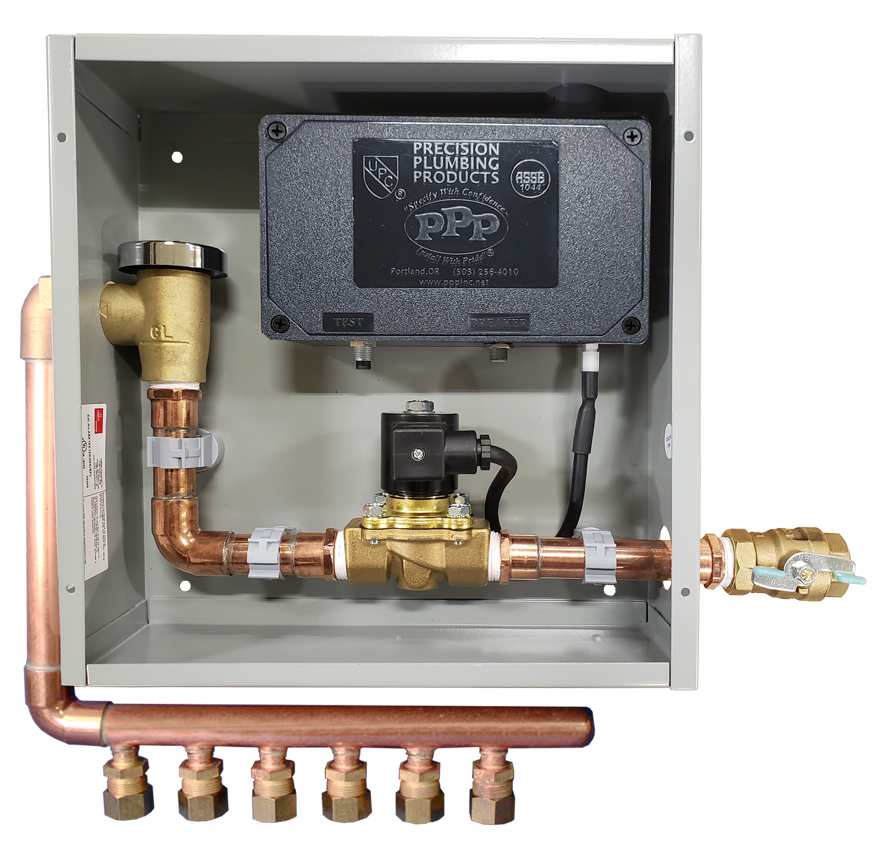

The Electronic Priming Manifold pictured is available many 24 Volt configurations. The model PTS-4 offers a four opening manifold capable of priming four separate floor drain traps from a single control unit. Models PTS-6 thru PTS-12 provide the same features only expanding to a total of twelve floor drains. The PTS-1320 will prime 13 to 20 manifolds and the PTS-2130 can prime 21 to 30 manifolds. All manifolds are available in either 1/2" or 5/8" compression fittings. Optional transformer available, specify when ordering. All choices available in Energy Management System Option.

Features:

  • Atmospheric Vacuum Breaker
  • Pre-Set 24 Hour Adjustable Timer
  • Manual Over Ride Switch/Test Button
  • 24V Solenoid Valve
  • 3/Wire Single Point Connection
  • 3/4” FNPT Connection
  • Calibrated Manifold For Equal Water Distribution
  • 5/8” or 1/2” Outlet Compression or 1/2”
  • PEX and PROPEX Fittings 4 Opening
    Manifold to 30 Opening Manifold
  • 120VAC TO 24VAC
  • Energy Management System Option Available

Part Numbers BIM Links
PTS-4-500-24V
PTS-6-500-24V
PTS-8-500-24V
PTS-10-500-24V
PTS-12-500-24V
PTS-4-625-24V
PTS-6-625-24V
PTS-8-625-24V
PTS-10-625-24V
PTS-12-625-24V
PTS-4-PEX-24V
PTS-6-PEX-24V
PTS-8-PEX-24V
PTS-10-PEX-24V
PTS-12-PEX-24V
PTS-4-PEX19-24V
PTS-6-PEX19-24V
PTS-8-PEX19-24V
PTS-10-PEX19-24V
PTS-12-PEX19-24V
